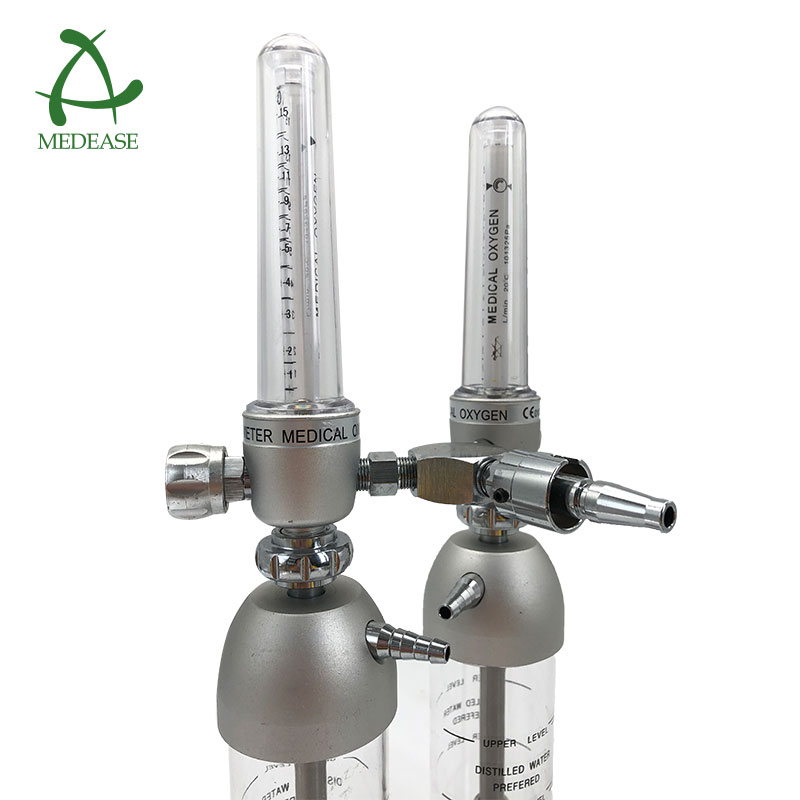

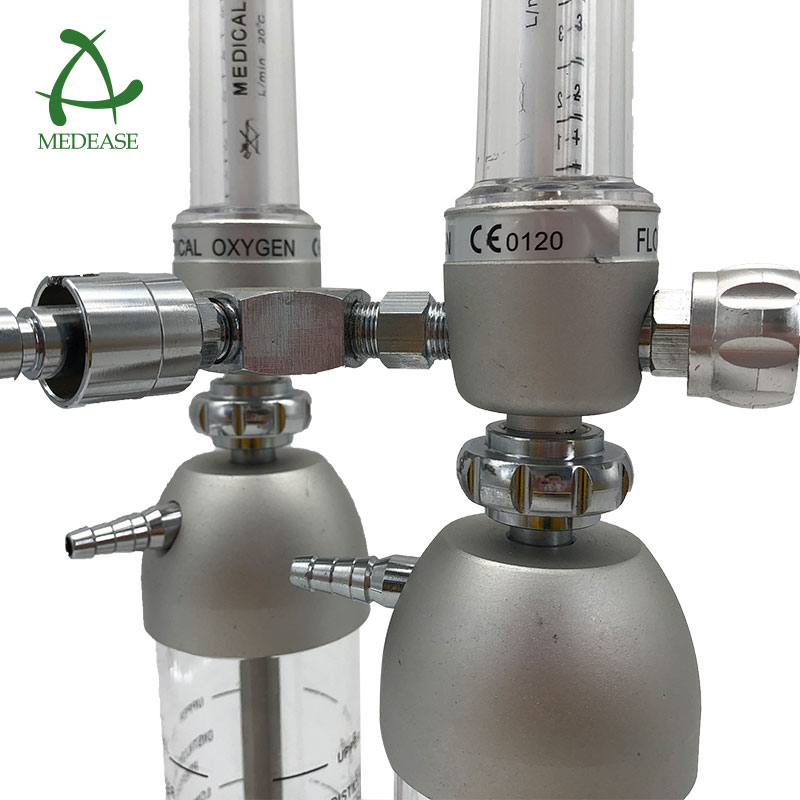

The medical gas flowmeter has the function of humidifying and filtering oxygen. It has precise flow rates for measurement, easy to use and safe. At the pressure dome and accuracy is tested which ensures the safety of the patient, accuracy is ± 10 % of displayed value. Calibrated at 50 psi inlet pressure.
Labeling ISO colors code allows for easy gas identification. Main using for Oxygen and Medical Air, other gas type CO2 and N2O available upon request. Medical gas flow meters could choices of different type adapter connections: OHMEDA, DISS, CHEMETRON, FS, DN, BS, JIS, etc.
* Back pressure compensated and calibrated at 50 psi
* Installed can be wall or rail mounted
* Input pressure: 4.5bar ± 0.5bar
* Accuracy: ± 10% read value
* Standard inlet connection: ISO G1/8“
* Lightweight aluminum body
|
Name |
Double Oxygen Flow Meter With DIN Adaptor |
|
Gas inlet types |
1/8NPT DIN adapter |
|
Scale |
0-15 lpm |
|
Accuracy |
+-0.5 lpm |
|
Flush Flow |
5 lpm |
|
Flow Range |
0-15L/min |
|
Wall type adaptor |
Diss,Ohmeda,Chemetron,British,French,German standard |
|
Delivery time |
15-25 days |
|
Wrantly |
2 years |
